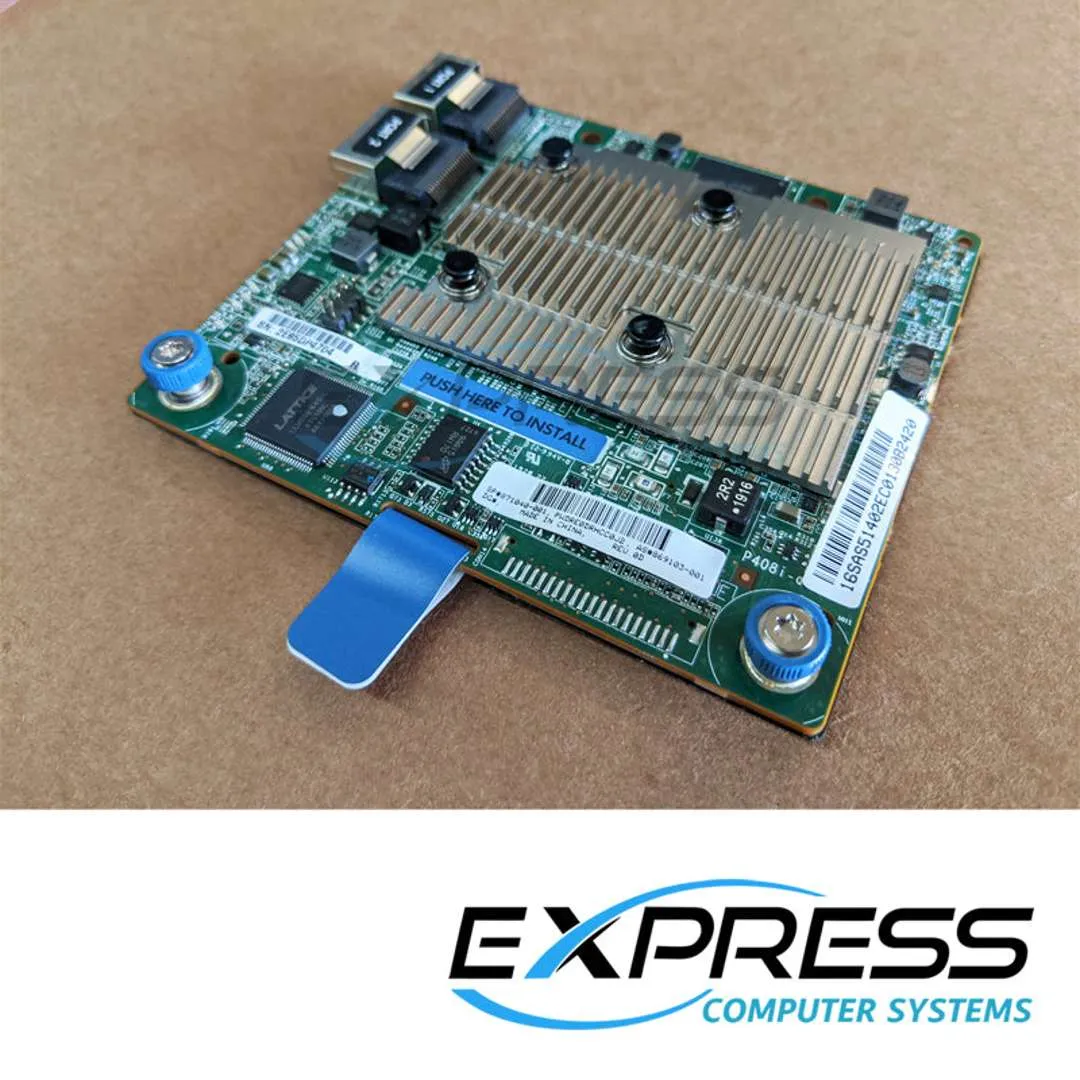

871040-001 - Smart Array P408i-a SR Gen10 - AROC (Adaptive RAID on chip),
- 12 Gb/s SAS,
- 6 Gb/s SATA,
- 8-SAS lanes across 2x4 internal Mini-SAS ports,
- 2GB flash-backed write cache,
- RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM,
- 10 ADM (Advanced Data Mirroring)
871040-002 - AROC(Adaptive RAID On Chip) P408i-a SR M83C LH Controller
871040-003 - SPS-AROC P408i-a SR G10 M83C 8G LH Ctr
871040-004 - SPS-AROC P408i-a SR G10 XR/MPQ 8G LH
Are you looking for an enterprise-level controller to maximize performance and storage capacity without occupying a PCI Express (PCIe) expansion slot? The HPE Smart Array P408i-a SR Gen10 Controller, supporting 12 Gb/s SAS and PCIe 3.0, provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. This controller has eight internal SAS lanes, allowing connection to SAS or SATA drives, supports Mixed Mode operations of RAID and HBA simultaneously, and offers encryption for data-at-rest on any drive.
The Smart Array P408i-a SR Gen10 Controller is ideal for maximizing performance while supporting advanced RAID levels with 2 GB Flash-Backed Write Cache (FBWC). This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot. The Gen10 controllers are supported by the HPE Smart Storage Battery. The HPE Smart Storage Battery supports multiple devices and is sold separately.
Data Transfer Rate 12Gb/s SAS per lane 6Gb/s SATA per lane PCI Express 3.0 x8 lane width
Servers Supported HPE ProLiant DL360 Gen10 HPE ProLiant DL560 Gen10
Cache 2 GB Flash-Backed Write Cache
Certifications FIPS 140-2 Level 1 Implementation Under Test with expected validation in 2018
Additional Features HPE Smart Array SR Secure Encryption (optional license) HPE Smart Array SR SmartCache (optional license)
Ports Internal: 8 SAS lanes across 2 x4 Mini-SAS ports
Form Factor Type-a modular controller
| Spare Part SKU | 871040-001 |
DL365 Gen10 Plus Notes:
If this controller is selected along with any other x16 PCIe Card, then the HPE DL360 Gen10 SFF Internal Cable Kit (P26449-B21) is required.
